    Configuring External Systems in Esploro

    Overview

    This page describes configuring external systems in Esploro. For information on configuring S/FTP connections see here. For information on configuring allowed emails during testing see here. For information on general Esploro settings such as languages and logos see here.

    Configuring DOI Agencies

    For more information about DOIs in Esploro, see DOI Integration and Digital Object Identifier (DOI) Registration.

    You can enable or disable integration with DOI registration agencies on the DOI Configuration page (Configuration Menu > Repository > Integrations > DOI Integration).

    DOI Integration.png

    DOI Integration

    A DOI contains a prefix that is assigned to your institution by the agency and a suffix, The suffix can have its own prefix that is unique for each asset category. The rest of the suffix is a unique number representing the asset. You can select the number of digits in the number and starting number for your assets.

    For example, if the prefix assigned to your institution is 10.ABC, and you configure your suffix's starting number to be 1, your suffix padding to be 8, your suffix prefix label to be data, then the first DOI that Esploro generates is 10.ABC/data.00000001.

    Currently, Esploro can integrate with Crossref and DataCite. You can enable or disable integration with an agency and you can edit a configuration.

    When integrating with Crossref, assets of type Publication > Journal Article or any Conference type cannot be registered for a DOI.
    To edit integration with an agency:
    1. Select Edit in the row actions list. The agency's integration details page appears.
    2. Edit the fields on the page:
      When set to No and the Update DOI Registration Agency - Research Assets job runs, Esploro sends to the DOI registration agency only changes to non-migrated assets that were registered with the DOI registration agency.
      • Registration Agency (read only)
      • Crossref registration name (Crossref only, mandatory) – The name of the account manager as registered in Crossref.
      • Repository name (Crossref only, mandatory) – A name that you would like to call your repository. Crossref uses this name in its interface as the database in which to hold datasets. This name is only used for dataset deposits.
      • Email (Crossref only, mandatory) – An email address to which to send updates about the status of registration requests sent to Crossref. With DataCite, Esploro uses an API. As a result, Esploro displays the status of the registration immediately on the page after the request is made. With Crossref, Esploro sends the request using a less immediate interface. If there is a quick response, Esploro displays the result on the page. Otherwise, Crossref sends updates on the status of the request to the email address that you enter in this field.
      • Asset Categories/Types (mandatory) – The asset categories/types for which you enable this agency. You can select multiple categories or types, or select All to enable the agency for all categories or types.
      • DOI prefix (mandatory) – The prefix assigned to your institution by the agency. This should start with 10.
      • Account ID (mandatory) – Your institution's repository ID as registered in the agency.
      • Account password (mandatory) – Your institution's repository password as registered in the agency.
      • Suffix starting number (mandatory) – The first suffix number to use when creating DOIs for your institution with this agency. Enter digits only. If a DOI with this suffix number already exists, Esploro will use the first available number larger than this number that is not already in use. A value of 0 cannot be used as the suffix starting number. A value of 0 cannot be used as the suffix starting number.
      • Padding – The length, in digits, of the suffix, including the automatically generated sequence number. Any unused digits in the suffix are replaced with zeroes. Enter a single digit only (between 1 and 9).
      • Use environment – Select whether to actually register the DOIs with the agency (Production) or whether you are testing the profile (Test) using the agency's test environment. You cannot migrate DOIs (see below) in a production environment when this profile points to the test environment.
      • Update DOIs of migrated assets – When set to Yes and the Update DOI Registration Agency - Research Assets job runs, the job includes changes to all assets that were registered with the DOI registration agency, including migrated assets that hold DOIs that were registered by your institution. For these assets, the job updates the DOI registration agencies with these assets' metadata and also updates these assets' URLs in the agencies to resolve back to Esploro. Note that these changes cannot be undone.
      • Allow researchers to reserve DOIs – Enable/disable researchers to reserve DOIs on their own by selecting Yes or No on the Allow researchers to reserve DOIs radio button.

        Allow Researchers to Reserve DOIs.png

        Allow Researchers to Reserve DOIs

      For example, if the prefix assigned to your institution is 10.ABC, and you configure your suffix's starting number to be 1, your suffix padding to be 8, and your suffix prefix label for this asset category to be data (not yet developed by Ex Libris; coming soon), then the first DOI that Esploro generates for assets of this category is 10.ABC/data.00000001.

    3. For each category, or for groups of categories, enter an optional suffix label (a prefix for the suffix). For each label:
      • Select one or more asset categories/types.
      • Enter the suffix label using any of the following characters: a-z A-Z 0-9 . - _ ; ( ) /

      You can add, edit, and delete labels.

    4. When you are done editing, select Save.

    Configuring Handle Server Integration

    You can configure the Handle server integration to allow you to add handle identifiers to assets. (For more information on adding handle identifiers to assets, see the Asset Details section on the relevant Adding Staff-Mediated Research Deposits - Publication page.)

    You configure the Handle server integration from the Handle Server Integration page (Configuration Menu > Repository > Integrations > Handle Server Integration).


    Handle Server Integration
    To configure handle server integration:
    1. Select the Active checkbox to activate the integration.
    2. In the Profile Name field, enter a profile name.
    3. In the Naming Authority Prefix field, enter the naming authority prefix as assigned to you by the Handle System.
    4. In the Suffix field, enter a suffix to be added to the handle identifier.
      Esploro does not automatically add characters such as a slash or colon, so if you want the output to be: http://hdl.handle.net/10536/DRO/DU:30028653, the prefix should be: 10536/DRO/ and the suffix: DU:.
    5. In the Sequence Start field, enter a number from which the handle identifiers should start.
    6. Select Save.

    The handle server integration is configured.

    Configure ORCID Integration

    A researcher can register with ORCID to receive an ORCID ID to identify them, and to grant the institution permissions to handle the profile on the researcher’s behalf.

    In order for this feature to work, the researcher's institution needs to be registered with ORCID, and must also contact ExLibris customer support in order to activate the feature.

    To configure their ORCID integration, an institution must complete the details in the ORCID Integration page (Configuration Menu > Repository > Integrations > ORCID integration).

    ORCID integration options.

    ORCID Integration
    • Client ID - The institution's ORCID Client ID - provided by ORCID.
    • Client Secret - The institutions ORCID Client Secret - provided by ORCID. The Client Secret together with the Client ID are the API credentials for your institution - they function like a username and password.
    • Organization ID - The Organization ID is how the institution is identified in a public database. This can be Ringgold or GRID.
    • Organization ID Type – The type of Organization ID provided - can be Ringgold or GRID.
    • Redirect URI - The redirect URL in Esploro to which ORCID's server returns the user once ORCID activities have been completed. The field can be left empty. If filled in, the value should be the URL of your institution's Esploro profile.
    • Integration Model - The type of connection (either direct or token delegation) through which ORCID connects to Esploro. Currently, this should be Direct.
    • Target - The Esploro environment type (either Sandbox or Production) through which ORCID connects to Esploro. To send users to the real ORCID site, choose Production. For testing purposes, choose Sandbox.
    • Send Employment – Do you want to send employment data to ORCID. If yes, then a Researcher’s ORCID profile will be updated to list that the Researcher is employed by the Organization. In order to send employment information, the Organization ID is mandatory. The employment information is updated by the Update Researchers ORCID job accessed from General > Institution Settings > Research Jobs Configuration. This job is available once the ORCID integration details have been entered.
    • Push assets – Whether or not to push assets to ORCID. Out of the Box the value is No.
    • Asset Categories/Types – These are the asset categories/types to push to ORCID. This field can only be updated if the Push assets field is set to true. Out of the Box, all asset types are pushed.

    When the ORCID Integration details have been entered by the institution, in the Researcher Profiles the researcher can click on a link that takes them to the ORCID login page, where they can register/connect to ORCID.

    Register ORCID ID.png

    Register/connect ORCID ID

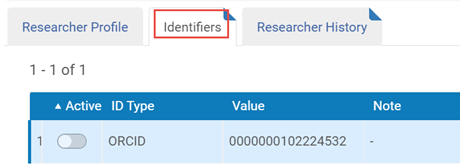

    The ORCID status for researchers appears in the researcher Identifiers tab.
    identifiers for orcid.png
    Identifiers Tab

    Configure IRUS UK Usage Tracker

    You can now send portal usage information to IRUS-UK. IRUS-UK (Institutional Repository Usage Statistics UK) is a national aggregation service, which provides COUNTER-conformant usage statistics for all content downloaded from participating UK institutional repositories (IRs). To enable this feature, you must opt in by enabling the IRUS-UK Tracker (Configuration Menu > Repository > Integrations > IRUS-UK Tracker). Select the Customer Consent check box. You can then choose whether or not to show an alert that the usage information is being sent with the Display information message on the portal check box. By default, the option is disabled.

    IRUS_UK Usage Tracker.jpg

    IRUS-UK Tracker

    For the sake of sending the relevant asset information the usage refer to to IRUS-UK, the following improvements have been made to the OAI DC publishing format:

    • More granular asset types were added to dc:type.
    • Repository item URL was added to dc:identifier.



    Configuring Integration Profiles

    To configure integration profiles, you must have the following role:
    • General System Administrator
    Esploro integrates with external systems such as vendor systems, Enterprise Resource Planning systems, catalog systems, remote storage systems, and so forth) using standard protocols (such as S/FTP). For more information, see Integrations with External Systems.
    Some integration profiles create jobs that can be used to export information to, or import information from, an external system. Other integration profiles provide tokens and codes to use to configure external systems.
    You begin configuring integration profiles on the Integration Profile List page (Configuration Menu > General > External Systems > Integration Profiles).
    Integration Profile List Page
    The Integration Profile List page includes a list of the integration profiles.
    You can perform the following actions on this page:
    • Add an integration profile (see the linked sections in the table below).
    • Edit an integration profile (Edit in the row actions list). When editing a profile, you cannot change the profile type. In addition, you can add contact information relevant to the profile n the Contact Information tab.
    • Delete an integration profile (Delete in the row actions list).
    • View job history (Job History in the row actions list; see Viewing Completed Jobs.)
    For information on adding/editing an integration profile, see the following sections:
    Links to Information about Integration Profiles
    Profile Type Description More Information
    Aleph Bridge Integration Integrate a non-Esploro member's inventory from a central system into a bridge institution that is managed by the Esploro Network Zone. Integrating a Non-Esploro Member's Inventory from a Central System into a Bridge Institution Managed by a Network Zone
    API Restrictions   For more information about this profile, see the developer's network documentation at  https://developers.exlibrisgroup.com/blog/working-with-api-restriction-profiles/.
    Augmentation Configure OpenURL enrichment. Esploro Resolver Augmentation

    Authority Record Contribution



    For future use

    (Community Zone only)

    Bursar Export fines and fees to the institution’s bursar system. Exporting Fines and Fees to a Bursar Systems
    CAS Exchange authentication and authorization information for single sign-on with an external system. CAS-Based Single Sign-On/Sign-Off
    Central Catalog Integration Integrate an external Central Catalog with Esploro.

    Integrating an Esploro institution with SUDOC is the same as in Alma.

    Cloud IdP   For future use
    Course Enrollment Import course enrollment information into Esploro for use with Leganto. Configuring Importing Course Enrollment Jobs
    Course Loader Import courses from a course management system. Configuring Course Loading
    Digital Content Store Integrate with the UK CLA's Digital Content Store. Integrating with the UK's Digital Content Store (DCS)
    Discovery Interface Configure the location map link in the Get It tab. Configuring the Template for the Location Map Link
    Finance Import and export orders and invoices by vendors from and to an institution’s financial system. Financial Systems
    Google

    For customers who are exposing their library's unique materials to Google and want to monitor their site's exposure to Google, can use this integration to allow Google Console to verify the connection for Primo VE customers.

    Integrating the Google Search Console with Primo VE

    LDAP Import information from an Lightweight Directory Access Protocol (LDAP) system. Supporting LDAP
    LTI Tool Authentication between Leganto and your course management system. Configuring Learning Tools Interoperability (LTI)
    Link Resolver Plugin Performs external checks using an API that determines the most accurate available URL for the full text.
    Link Resolver Statistics

    The bX integration profile, integrates the connection between Esploro and bX for sharing Esploro link resolver data statistics.

    In addition, it allows Primo VE customers to register and enable the bX Recommender service.

    Linked Data Publish structured linked data. Linked Data
    Mail Handling Outgoing email handling Configuring Outgoing Email

    Metadata External Enhancement

    Select this integration option to enrich Japanese text using the Happiness transliteration tool.

    Integrating Esploro with Happiness

    New Order API Synchronize records from a vendor’s database to a purchasing or licensing library’s offerings.
    This profile works with any vendor that uses the new order API, and is also used if the order is created using the API by a REST client. For more information, see the following in the Developer Network:
    Real-Time Ordering
    OAI Repository Definition Publish records as OAI types. Setting Up OAI Integration
    OCLC Connexion Import records from OCLC Connexion. Importing Records from OCLC Connexion
    Online Payment Send payment receipt emails to the user using the WPM Education E-Payment System. Configuring the WPM Education E-Payment System
    Online User Update   For future use
    OpenID Connect User authentication layer. OpenID Connect
    Reading List Loader Imports a reading list from a .txt or .csv file Reading List Loader
    RFID Using an RFID reader, communicate with RFID tags on items. RFID Support
    Remote Storage Request a resource from a remote storage location or Automated Storage and Retrieval System. Requests to Remote Storage Facilities or Configuring the Dematic ASRS
    Resolver Proxy Configure a resolver proxy definition Resolver Proxies or OpenAthens Redirector
    Resource Sharing Integration Import borrowing requests from an external system.

    Importing Resource Sharing Borrowing Requests From an External System

    Integrating Esploro with the Netpunkt ILL System

    SAML Exchange authentication and authorization information for single sign-on with an external system. SAML-Based Single Sign-On/Sign-Off
    SMS Communication Configure SMS communication with patrons. SMS Communications
    SRU Server Activate SRU/SRW searching capability. SRU/SRW Search
    Self Check Configure communication between Esploro and a self-check machine. Self-Check Machines
    Social/Email Login Configure connection with social networks or email for user login. Social and Email Login
    SWORD Server Submit content to Esploro to be added to the repository. Click Monitor SWORD Imports after importing assets to Esploro using the SWORD protocol to view any errors and determine the cause of a failure.

    Configuring the SWORD Server Integration Profile

    SWORD Deposits

    Upload Electronic Holdings

    Upload and update Elsevier electronic holdings.

    Upload and update Ovid electronic holdings.
    Upload and update electronic holdings from ProQuest Ebook Central.
    Upload Electronic Holdings from Springer

    Upload Electronic Holdings from Elsevier

    Users Export/import users to/from a Student Information System. Student Information Systems
    Webhooks Trigger a HTTP request to a configured URI when a job ends. Webhooks
    Z39.50 Server Activate Z39.50 searching capability. Z39.50 Search

    Configuring Oable APC Integration

    An article processing charge (APC) is a fee charged to make a work available for open access in open-access or hybrid journals. This fee may be paid by the author, the author's institution, or their research funder.

    Esploro profiles include an APC form that initiates an APC request in a system called OABLE.

    The integration can be configured in the OABLE Configuration. Contact Ex Libris support to configure this.

    The APC form is enabled in Esploro only to institutions that have a license for OABLE. For these institutions, the customer parameter esploro_oable_integration is set to True.

    You will need to supply the following:

    • API Key provided by OABLE.
    • Institution name as it appears in ROR.
    • Institution email suffix (optional).
    • Whether this is for production or testing.

    APC request on the profile.

    APC REQUEST

    Pivot-RP Integration

    You can configure Esploro to be integrated with Pivot-RP. This allows you to view funding opportunities that Pivot-RP determines are relevant for you.

    To configure Esploro integration with Pivot-RP:
    1. Go to Configuration Menu > Portal & Profiles > Homepage Configuration.
    2. On the Header/Footer tab enable the Include Discover Funding link for signed in users option.

    To display the funding opportunities from Pivot, select the Discover Funding link in the header when logged in to a Researcher Profile.

    discover funding on profile.png

    Discover Funding
    Using an embedded search link from Pivot-RP, Esploro can display the funding opportunities for researchers affiliated with the Organizational Unit. You can retrieve the embedded search URL by following the instructions on Configuring the Organization. If you have yet to configure Research Organizational Units in Pivot-RP, you will need to complete that first.

    embedded funding link.png

    Embedded Search Link
    The funding displayed is based on one of two factors:
    1. The researcher's Pivot ID for a personalized integration to Pivot.
      pivot rp profile.png
    2. The organization's Pivot ID. If the user has more than one affiliated organization (with embedded links), then they will be displayed in separate tabs.
      multiple tabs for multiple organizations with fundiing links.png

    Select a funding opportunity to see more information about that opportunity in Pivot-RP.

    Select view more details in Pivot-RP to to see more information about the list of opportunities in Pivot-RP.

    If you have a Pivot ID, select Pivot-RP Profile to view your Pivot-RP profile.

    For information on configuring the embedded search link from Pivot-RP, see Configuring Research Organization Units. For a video showing how to work with Pivot-RP see here.
